Turnbar System

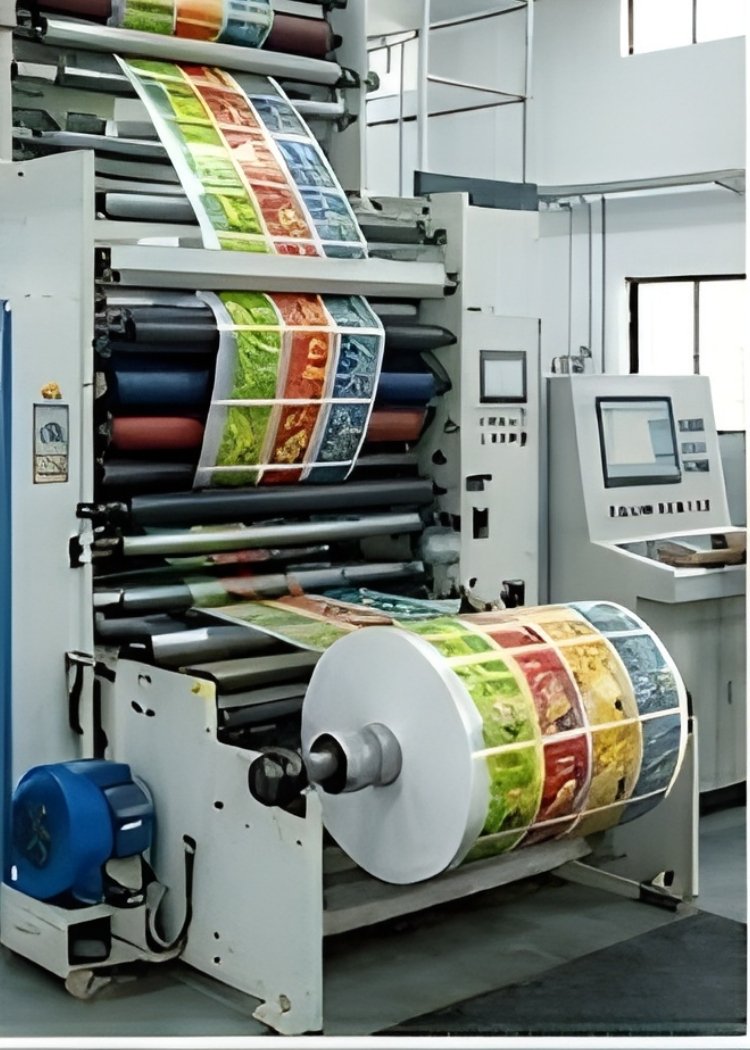

Multi-color flexible packaging printing and high-speed coating lines require specialized web handling to execute double-sided processing in a single machine pass. Flipping a fast-moving polymer substrate exactly 180 degrees without damaging the freshly printed ink or sensitive coatings is a critical mechanical challenge. To automate this delicate reverse-side orientation, Micro Enterprise engineers high-precision web reversing components. We are a prominent Turnbar System Manufacturer in Ahmedabad, Gujarat, developing non-friction air-bar assemblies that ensure zero-contact surface flipping.

Our industrial web reversing units are meticulously designed to handle critical web routing across converting lines processing thin BOPP films, sensitive foils, and laminates. Operating as an elite Turnbar System Exporter from India, we manufacture robust turning bars set on heavy-duty 45-degree mounting brackets. This advanced engineering ensures flawless linear web tracking and perfect registration stability at maximum running velocities, completely eliminating web wrinkling or material deformation inside the machinery.

Enquire Now

The Mechanics of 45° Cross-Bar Orientation & Rigid Base Framework

Reversing a high-tension web path without causing tracking lines or physical friction requires precise positioning and structural angling. Functioning as a high-integrity Turnbar System Supplier in Gujarat, our machine design integrates a heavy-duty mechanical frame with a mirror-polished turning assembly to handle sensitive materials:

Rigid Fabricated Steel Base Chassis: Built from heavy-plate structural steel coated in a protective industrial black finish, providing an ultra-stable foundation that completely absorbs line vibrations.
Precision 45-Degree Angular Cross-Bars: Features specialized hard-chrome plated turning bars mounted at mathematically exact angles to execute a smooth 180-degree web direction flip.
Target Substrates: Freshly printed polyester (PET) webs, surface-sensitive BOPP films, delicate Aluminum Foils, and multi-layer laminates.

Hard Chrome Wear Protection & Mechanical Alignment Integration

The operational efficiency of our turnbar system relies on its mirror-polished structural finish. The cross-turning bars are treated with a specialized heavy-duty Hard Chrome Plating to offer supreme wear resistance and eliminate mechanical drag. To sustain high-speed accuracy, this reversing setup features integrated mechanical tracking rod adjustments situated at the base of the framework. This structural layout allows for minute calibrations to correct lateral web drift during the flipping sequence, ensuring the substrate enters the next station perfectly centered without wrinkling.

Key Technical Features Of Web Reversing Systems

Micro-Adjustable Mechanical Tracking Rods: Outfitted with robust linkage rods at the lower chassis to lock the alignment parameters and maintain tight parallel tracking tolerances.
Rigid Heavy-Plate Angular Framework: Engineered from heavy-gauge hollow section steel profiles to prevent micro-deflections or tracking errors under high operational tension.
Mirror-Polished Hard Chrome Finish: Provides a premium, scratch-resistant surface layer that safeguards moving film webs from friction marks or scuffing.
High-Speed Multi-Color Pass Integration: Designed for seamless structural coupling between consecutive printing decks to maintain perfect registration accuracy on the reverse side.

Technical Specifications

Specification	Details
Material Support	BOPP, Polyester, PVC, Aluminum Foil, Paper
Surface Finish	Hard Chrome Plated / Mirror Finish
Cooling/Air System	Pneumatic Air-Cushion Support
Max Web Width	300 mm to 1500 mm (Customizable)
Mounting Angle	Precision 45-Degree Fixed or Adjustable
Roller Diameter	50 mm to 100 mm (As per requirement)
Application	Rotogravure, Flexo, Coating & Lamination Lines

Turnbar System FAQs:

Technical FAQs

It is used to reverse or flip the web (substrate) by 180 degrees so that printing or coating can be done on the reverse side of the material in a single machine pass.

No. Our systems use air-cushion technology where a thin layer of air prevents the material from touching the bar, ensuring a scratch-free process.

Yes, our Turnbar Systems are compact and modular, making them easy to retrofit onto existing Rotogravure, Flexo, or Coating machines.

We offer both fixed and adjustable mounting options to ensure perfect web tracking based on your specific machine layout.

Yes, Micro Enterprise is a leading exporter and supplier of Turnbar Systems from Ahmedabad to clients across India and global markets.

Typically, a low-pressure air supply (1-2 bar) is sufficient to create the necessary air film for smooth operation.

Micro Enterprise is located in Vatva GIDC, Ahmedabad, and is a trusted manufacturer for all high-precision web handling equipment.
